A full firmware rewrite for the coin acceptor hardware used in Makrshakr cocktail machines, targeting the WT32-ETH01 ESP32 board.

Context

Makrshakr machines integrate a coin reader to gate drink dispensing. The original firmware communicated over WiFi/HTTP. The goal of this project was to replace that communication layer entirely with Bluetooth Serial, making the device more robust, faster to pair, and independent of local network infrastructure.

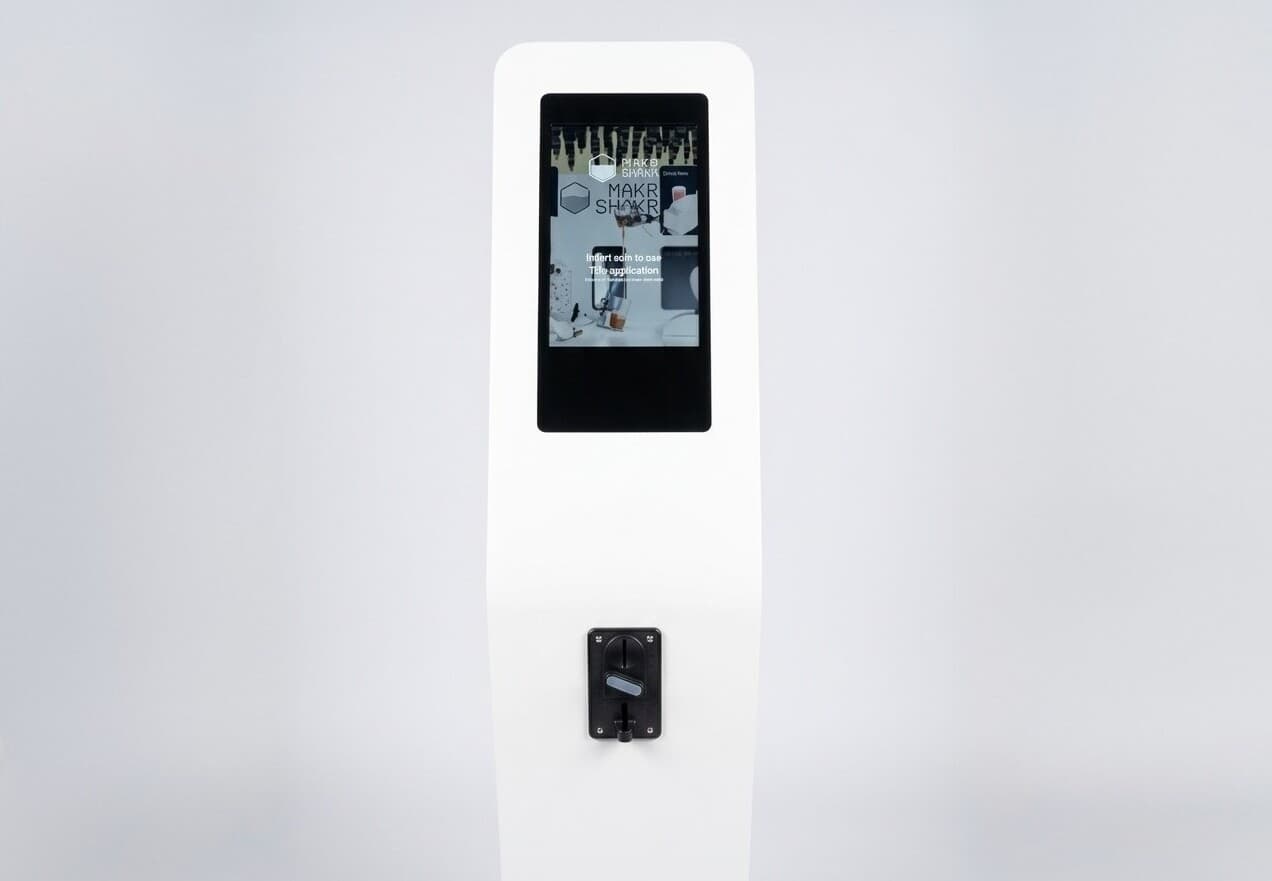

The rewritten firmware is currently running in production, paired with a custom Flutter kiosk app (also built for this project) that handles the customer-facing UI, communicates with the coin reader over Bluetooth, and sends drink orders to the Makrshakr robotic system.

What Changed

The core coin detection logic was preserved: hardware interrupts on GPIO 4 count pulses within a 300 ms window to determine coin value, with GPIO 32 controlling a power relay for the coin acceptor.

The communication layer was rebuilt from scratch:

  • Removed: WiFi provisioning (WiFiManager), HTTP API endpoints
  • Added: Bluetooth Serial server (MSBluetoothServer) with a clean command interface

The BT device advertises as CoinReader-XXYY and responds to some actions.

Architecture

CoinReader uses static class members (precTime, coinValue, isNewCoin) so the free-function ISR can access them without a pointer — a pattern that keeps interrupt handlers compatible with the ESP-IDF/Arduino framework constraints.

Application maintains two coin counters: pendingCoin (consumed on getCoin, resets to 0) and coinPulses (unbounded history, never cleared), giving the host system flexibility in how it tracks credits.

Hardware Debugging

Firmware development involved hands-on hardware debugging: oscilloscope analysis of coin pulse signals to validate interrupt timing, relay switching behavior, and edge cases in the 300 ms pulse-counting window. This was essential to ensure reliable coin detection across different coin acceptor models and power conditions.

System Integration

WT32-ETH01 (coin reader)
        │  coin credit events
        │  Bluetooth Serial
        ▼
Flutter Kiosk App (tablet)
        │
        ▼
Makrshakr Robotic System

The Flutter app was purpose-built to complement this firmware: it manages the Bluetooth connection, tracks coin credits, and translates them into drink orders dispatched to the robotic bartender.

Stack

  • Platform: ESP32 (WT32-ETH01)
  • Toolchain: PlatformIO / Arduino framework
  • Firmware language: C++
  • Kiosk app: Flutter
  • Communication: Bluetooth Serial (replaces WiFi/HTTP)
  • Debug tools: Oscilloscope, serial monitor
